Blackspot 5G Ready Antenna
FITS YOUR ROUTER: HUAWEI B535
Original price was: £149.99.£114.99Current price is: £114.99.
SKU: antenna-only-white
- High gain directional antenna
- Bespoke positioning survey included
- Pole Mount, Wall Mount & Desk Stand
- 5m Cables (extensions available)
- 14 Day Money Back Guarantee

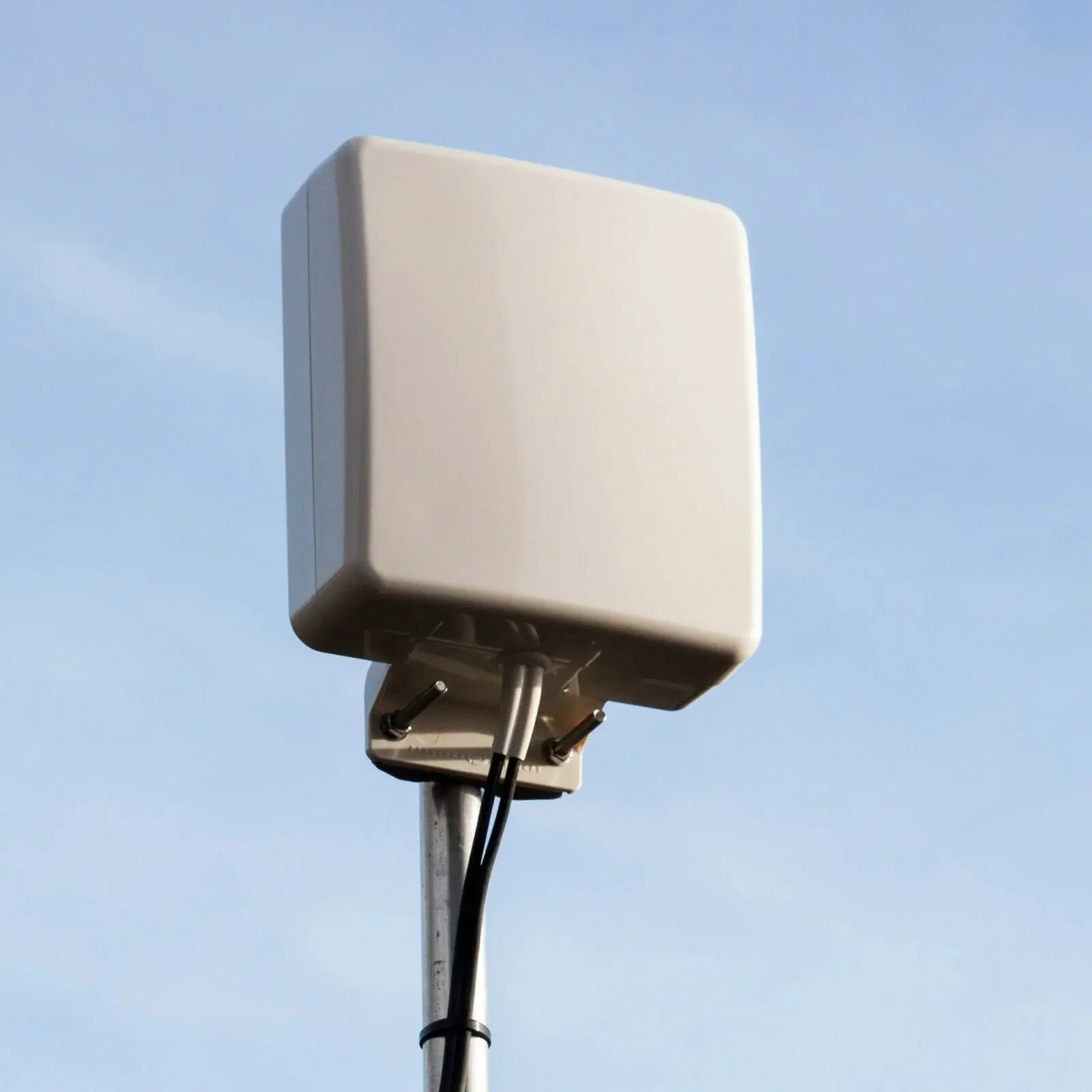

Our high-gain mobile broadband antenna has a reputation for consistently delivering exceptional performance in both rural and urban environments.
Designed in the UK, it is compatible with all 3G, 4G and 5G frequencies used by UK mobile operators EE, Three, Vodafone, O2 and their sub-operators.
The antenna is directional, but don’t let that put you off as we will tell you exactly where to point it. A full location survey is available with every purchase and since the antenna has a 90-degree field of view it’s really easy to set up.
A directional, rather than omnidirectional (360 degrees) antenna allows you to not only reach masts further away but also single out an individual mast which may provide a faster speed than one much closer to you.
Your router has two antenna sockets, the 2×2 MIMO, which means there are two cables and two SMA plugs for connection into the back of your router.
Further Information
The two most important frequencies for the UK are 800Mhz (Band 20) for rural broadband and 1800Mhz (Band 3).
Peak Gain:
- 698-960Mhz: 6dBi
- 1200-1400Mhz: 7.5dBi
- 1710-2170Mhz: 9dBi
- 2396-2700Mhz: 9dBi
- 3400-3800Mhz: 9dBi
Cable Length: 5m Twinned Coax Cable
Installation Hardware: Cable Wall Clips
- Desk Stand
- Wall / Angle Mount Bracket
- Mast / Pole Mount
- Clamp Bracket
- 1x U Bolts
- 2x Bolts
- 2x Nuts
- 2x Washers
- 2x Grip Washers
FITS YOUR ROUTER: HUAWEI B535
Huawei B535 router
Other Model Variants:
B535-232, B535-235, B535-333, Three HomeFi+
Not your Router?
Click here to start again.
Router Download Speed: 400Mbps
Router Upload Speed: 150Mbps
4G or 5G: 4G
Socket Type: 2 x SMA
Router Category: LTE Category: 7

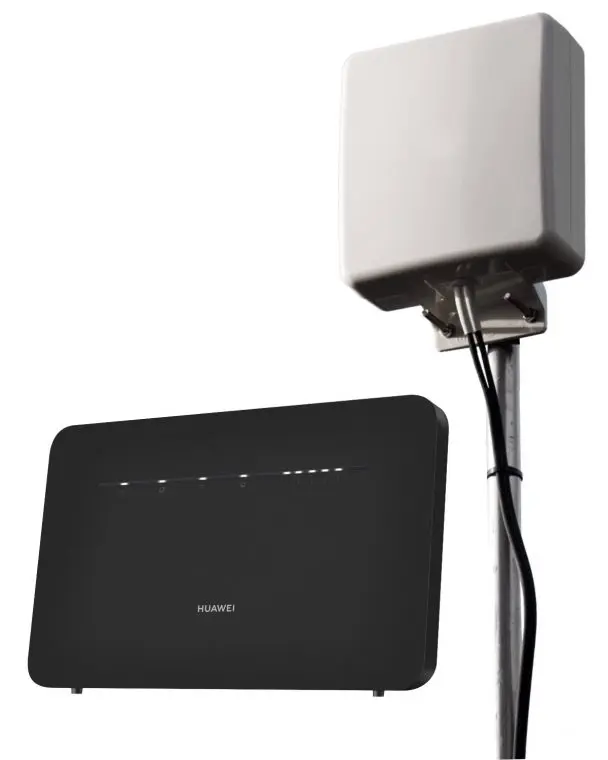

The Huawei B535 is one of the most popular 4G+ LTE routers available. Providing a Wi-Fi connection for up to 64 devices and with 4 gigabit ethernet sockets, it’s an ideal choice for most home or office locations. With two antenna sockets hidden behind a small plastic flap, this router especially benefits from an external antenna to improve the signal stength and quality, resulting in increased performance and download speeds.
Router Antenna Sockets
